Fiberglass Geogrid with Polypropylene Geotextile Geocomposite

Composite geogrid is a high-strength, high-stability geomaterial, mainly composed of polypropylene and glass fibre.

Commodity name： Fiberglass Geogrid with Polypropylene Geotextile Geocomposite

Category:

Email:

Description

Introduction

Fiberglass/polyester reinforcing geocomposite is the geocomposite which includes a high-strength, low-strain reinforcement grid with greater aperture measurement and a flexible nonwoven cloth bonded to the higher face. The fiberglass/polyester yarns with excessive tensile energy and low creep performs the feature of reinforcement and the nonwoven performs the features of separation, filtration and drainage.

Applications

1.Fiberglass Geogrid Stitched With Nonwoven Geotextile Impregnated By Bitumen is an asphalt reinforcement composite that fiberglass geogrid with mild weight PET Spunbond Nonwoven Fabric . They are stitched collectively and lined by means of bitumen to beef up the bond with the asphalt layers .
2.The asphalt layer to enlarge the tensile power to forestall street floor crack brought about by way of basis crack reflection. The chemistry balance is good, the hot-stability is good, anti-weary dehiscence, anti-low temperature shrinkage crack, postponement discount reflection crack.

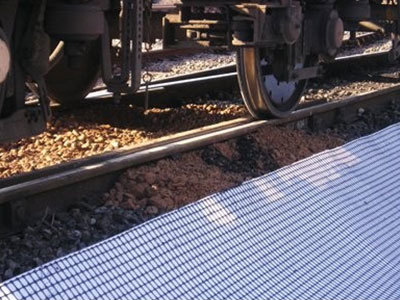

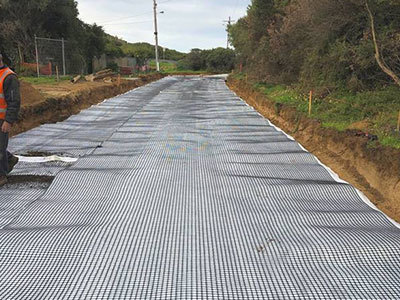

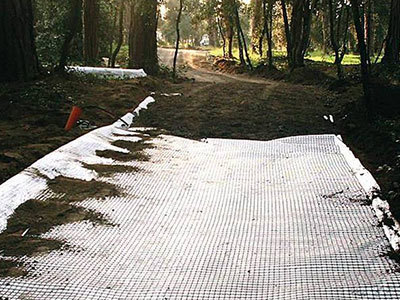

Working Drawing

Specifications

Geogrid Properties	Test Method	Unit	MD	TD
Polymer		一	PP	一
Minimum Carbon Black	ASTM D 4218	%	2	一
Tensile Strength	ASTM D 6637	kN/m	30	30
Tensile Strength @2%Strain	ASTM D 6637	kN/m	10.5	10.5
Tensile Strength @5%Strain	ASTM D 6637	kN/m	21	21
Elongation	ASTM D 6637	%	13	13
Geotextile properties
Polymer			PET	一
Mass per unit area	ASTM D 5261	g/m2	200	一
Tensile Strength	ASTM D 4595	kN/m	13	13
Tensile Enlongation	ASTM D 4595	%	50	50
CBR Puncture Strength	ASTM D 6241	N	2300	一
Apparent Opening Size	ASTM D 4751	mm	0.11
Roll Dimension
Roll Width		M	3.9/5.9	一
Roll Length		m	50
