Best Quality Plastic Mesh HDPE Geonet 3D Tri-Planar Composite Drainage Net

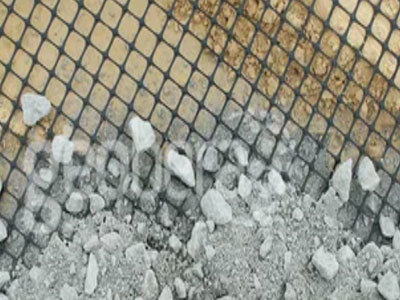

Laying geonets on road slopes can prevent rocks from sliding down, avoiding hazards to people or vehicles; geonets wrapped around road debris can prevent road debris loss and roadbed deformation, and improve roadbed.

Commodity name： Best Quality Plastic Mesh HDPE Geonet 3D Tri-Planar Composite Drainage Net

Category:

Email:

Description

Introduction

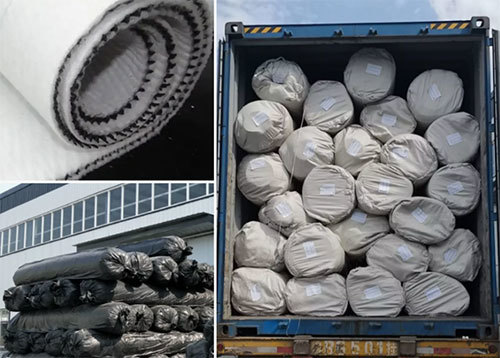

Three dimensional composite drainage network is a new type of geosynthetics. Its structure is a three dimensional geonet core, and there are needle punched non woven geotextiles on both sides. The three dimensional geogrid core consists of a thick vertical rib and an inclined rib at the top and bottom, which can rapidly drain the around water from the road. Composite geonet is a new type drainage material. lt has three layers: three-dimensional geonet and nonwoven geotextile on both sides Thematerial of geonet is HDPE. and the material of geotextile can be needle punched PET/PP nonwoven geotextile and thermal bonded continuous filament nonwoven geotextile. It also has a pore maintenance system, which can block capillary water under high load. At the same time, it can also play the role of isolation and foundation reinforcement.

Features

Product name: three dimensional composites drainage network.
Material: high density polyethylene.
Length: 30 m, 40 m, 50 m or at your requests.
Width: 2 m - 4 m.
Thickness: 5 mm - 8 mm.
Non woven geotextile unit weight: 200 g/m².
Mass per unit area: 700 g/m², 1000 g/m², 1300 g/m², 1600 g/m².

Video Showcase

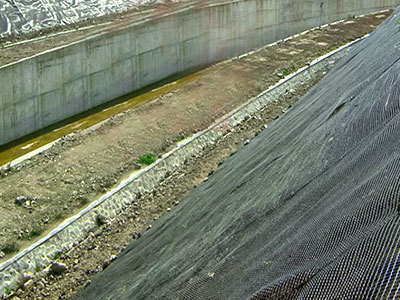

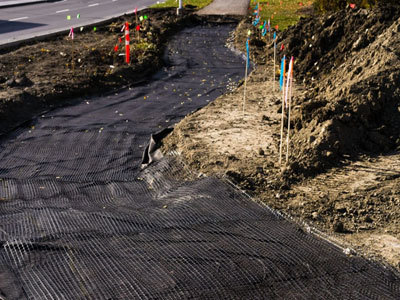

Applications

1. Tunnel drainage.
2. Landfill drainage.
3. Railway drainage.
4. Retaining walls drainage.
5. Highway roadbed drainage.
6. Underground structure drainage.
7. Garden and playground drainage.

Working Drawing

Specifications

Specification	CE121	CE131	CE151	CE181	CE191	DN1	HF10
Mess per unit area≥（g/m2)	730±35	630±30	550±25	700±35	720±35	750±35	1240±60
Mesh size≥（mm)	8*6	27*27	74*74	90*90	105*105	10*10	10*10
Net width≥m	2.0 or 2.5
Length of roll(m)	50.0 or 40.0
Maximum drawing force≥（KN/M)	6.2	5.8	5.0	5.77	6.0	6.0	18
Remark	The special spec or size can be manufactured according to the demands of the contract or aggrement
