Geotube with Customizable Width and Length for Building Material

Geopipe bags are a professionally designed and made environmentally friendly material with a variety of excellent properties.

Commodity name： Geotube with Customizable Width and Length for Building Material

Category:

Email:

Description

Introduction

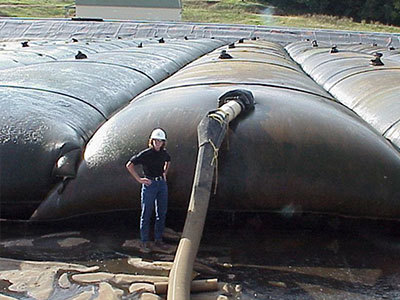

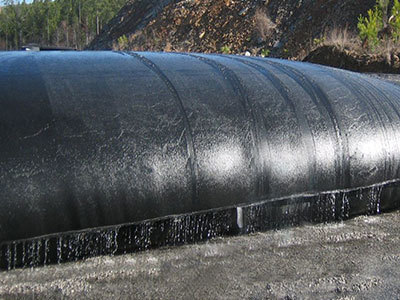

Geotextile tube bag (Geotube) is one type of bag with pipe shape, woven with polypropylene yarn with filter structure, the precept of motion is in the procedure of underwater dredging will be polymer flocculant a positive percentage of the answer into the mud, utterly blended into the geotube bag, after strain filtration dehydration and consolidation, so as to decrease the extent of sludge and solidifying effect.

Video Showcase

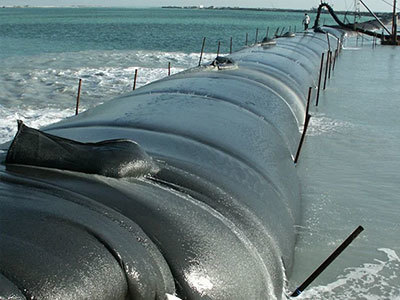

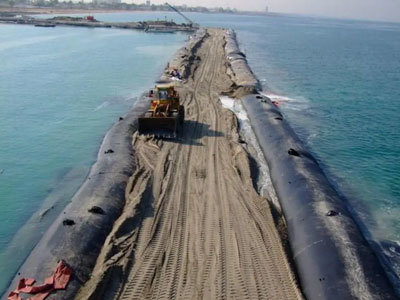

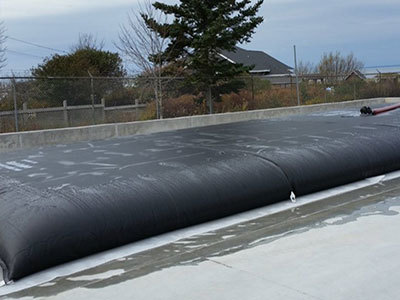

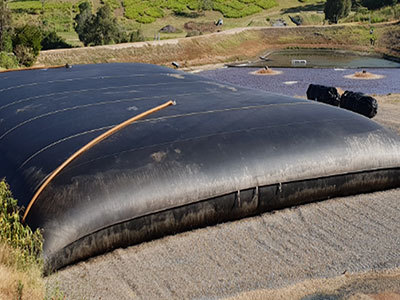

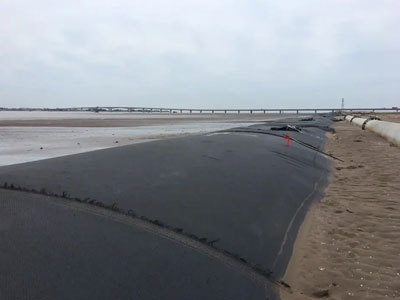

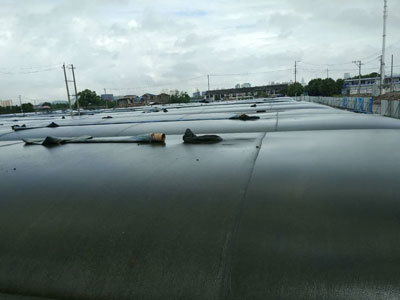

Applications

Material diversity: Geotube luggage are normally made of a variety of geosynthetic materials, such as polypropylene, polyethylene, polyester, etc., with exceptional strengths, chemical resistance, and water permeability.

Flexibility and plasticity: Geotextile baggage have a positive diploma of flexibility and plasticity, which can adapt to more than a few terrains and structural surfaces, facilitating building and installation.

Waterproof and anti-seepage: As a protecting layer or isolation layer, geotextile baggage have extremely good water resistant and anti-seepage properties, which can efficaciously stop the infiltration of groundwater or hazardous substances.

Corrosion resistance and climate resistance: Geotextile luggage commonly have sure corrosion resistance and climate resistance, and can hold balance and sturdiness below harsh environmental conditions.

Environmental Protection and Sustainability: The substances of geotextile baggage normally have positive environmental performance, can degrade or recycle, and meet the necessities of sustainable development.

Working Drawing

Specifications

Item	Test Method	Unit	GT270PP	GT300PP	GT350PP	GT400PP	GT500PP
Tensile Strength(MD)	ASTM D4595	kN/m	55	65	70	80	84
Tensile Strength(TD)	ASTM D4595	kN/m	50	55	70	80	105
Tensile Elongation(MD/TD)	ASTM D4595	%	18	18	18	18	18
Tensile Strength @2%Strain(MD)	ASTM D4595	kN/m	11	13	14	16	16.8
Tensile Strength @2%Strain(TD)	ASTM D4595	kN/m	10	11	14	16	21
Tensile Strength @5%Strain(MD)	ASTM D4595	kN/m	22	26	28	32	33.6
Tensile Strength @5%Strain(TD)	ASTM D4595	kN/m	20	22	28	32	42
The seam strength	ASTM D4884	kN/m	25	27.5	35	40	52.5
CBR Burst Strength	ASTM D6241	kN	5.8	7	8	9.3	10.5
Pore Size Ogo	ASTM D4751	mm	0.43	0.43	0.43	0.43	0.43
Water Flow Qioo	ASTM D4491	L/m2/min	2037	1630	1222	815	611
U.V.Resistance	ASTM D4355	%	80	80	80	80	80
Weight	ASTM D5261	g/m2	270	300	350	400	500
